Steel beam technology has come a long way, with modern advancements improving efficiency, strength, and sustainability in construction. One of the most significant innovations in recent years is the development of cellular beams.
These uniquely designed beams feature circular or elliptical openings along their length, significantly reducing weight while maintaining structural integrity. Advancements in manufacturing have made cellular beams a cost-effective solution, enhancing project efficiency and reducing overall expenses.
This blog explores the advantages of cellular beams, their applications in contemporary construction, and how they compare to traditional steel beams. Understanding these innovations can help architects, engineers, and developers make informed decisions for their projects.
What Are Cellular Beams?

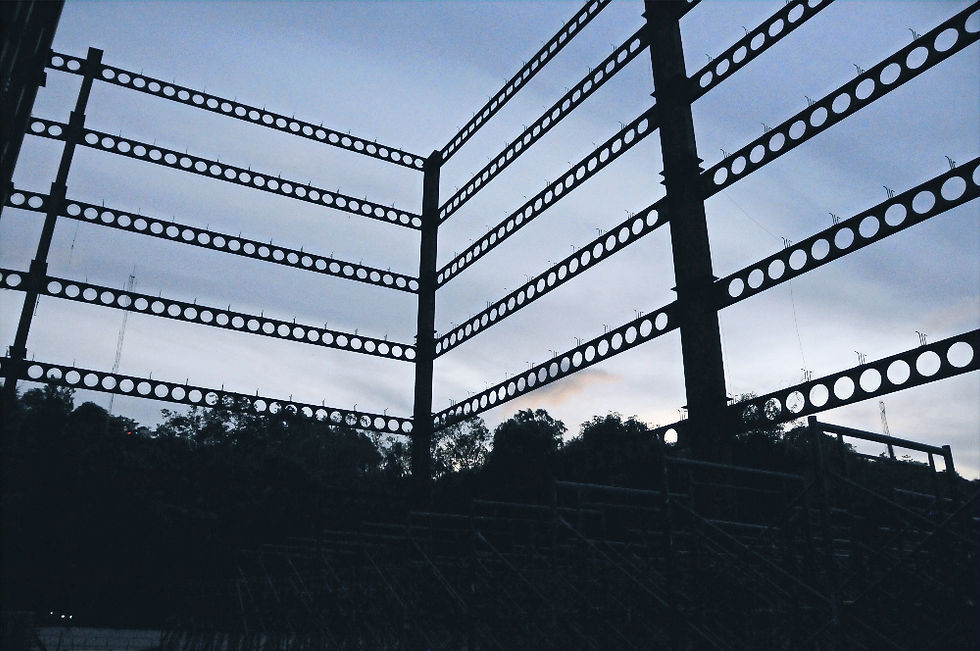

Cellular beams are a type of structural steel beam with regularly spaced, circular web openings along their web. These openings are cut using advanced manufacturing techniques, ensuring that the beam retains its strength while reducing overall weight. This innovative design enhances flexibility, making cellular beams an attractive option for modern construction projects.
The concept of cellular beams evolved from castellated beams, which have hexagonal openings. However, cellular beams offer superior load distribution and greater aesthetic appeal due to their rounded holes. They are widely used in large-span structures, commercial buildings, and industrial applications.
Advantages of Cellular Beams
1. Reduced Weight Without Compromising Strength
One of the key benefits of cellular beams is their ability to provide high structural performance while using less material. Increasing the beam depth enhances strength without the need for additional material. The circular cut-outs remove excess steel, reducing the beam’s self-weight without affecting its load-bearing capacity.
2. Increased Structural Efficiency
Due to their optimised weight-to-strength ratio, cellular beams provide an efficient solution for longer spans than traditional steel beams. This means fewer columns are needed in a structure, leading to more open and flexible floor plans, a critical advantage in commercial and industrial buildings.
3. Improved Cost Efficiency
By using less steel, cellular beams reduce material costs while maintaining structural performance. Optimising the size of the bottom flange enhances structural efficiency by allowing for a significant reduction in the size of the top flange, which is crucial in both plate girder and rolled section types. Their ability to span longer distances also lowers installation costs by minimising the need for additional support structures.
4. Enhanced Aesthetic Appeal
The open web design of cellular beams makes them a preferred choice for architects and designers aiming for an industrial yet modern look. The circular openings add visual interest while also allowing for creative interior design solutions.
5. Easier Integration of Services
The perforated design of cellular beams allows mechanical, electrical, and plumbing (MEP) systems to pass through the beam rather than around it. Long spans facilitate efficient mechanical routing for services, making construction easier and more versatile. This improves space efficiency and simplifies the integration of air ducts, electrical conduits, and piping within a structure.
6. Sustainability and Environmental Benefits
Cellular beams contribute to sustainable construction by reducing the amount of steel required in a project. Additionally, their lightweight nature leads to lower transportation and installation energy costs, supporting greener building practices.
Design and Manufacturing of Cellular Beams
The design and manufacturing of cellular beams involve a meticulous process that ensures optimal performance and efficiency. The design phase begins with calculating the load-bearing requirements, considering factors such as the type of structure, building weight, and environmental conditions. These calculations determine the beam’s dimensions, including its depth, web thickness, and flange width, ensuring it meets the specific needs of the project.
Manufacturing cellular beams involves cutting and assembling plate sections with high precision. Advanced CNC machines are used to cut the plate sections, ensuring accuracy and consistency. These sections are then welded together to form the beam, followed by rigorous quality control checks to ensure compliance with required standards.
Cellular beams can be customised in various shapes and sizes, making them suitable for a wide range of applications. They serve as essential structural elements in modern buildings, offshore structures, and other projects where high strength and efficiency are paramount. This versatility makes cellular beams a preferred choice in contemporary construction.
Applications of Cellular Beams in Modern Construction
Cellular beams are widely used across various sectors due to their versatility and efficiency. Some of the most common applications include:
1. Commercial Buildings
In office buildings, shopping centres, and hotels, cellular beams allow for large open spaces with fewer supporting columns. This maximises usable floor area and enhances interior flexibility.
2. Industrial Facilities
Factories, warehouses, and manufacturing plants benefit from cellular beams' long-span capabilities, enabling expansive, unobstructed workspaces that improve operational efficiency.
3. Sports and Entertainment Venues
Arenas, stadiums, and exhibition halls require wide-span structures to accommodate large crowds. Cellular beams offer the necessary strength while reducing material costs and weight.
4. Airports and Transport Infrastructure
Airports, railway stations, and bus terminals use cellular beams to create vast, column-free interiors, ensuring passenger convenience and efficient facility layout.
5. Residential Developments
Modern residential projects increasingly incorporate cellular beams to achieve open-plan living areas and accommodate mechanical services within the structure itself.
Cellular Beams vs. Traditional Steel Beams
1. Weight and Material Efficiency
Cellular Beams: Lighter due to the cut-out sections, reducing steel consumption.
Traditional Steel Beams: Solid web structure makes them heavier and more material-intensive.
2. Structural Performance
Cellular Beams: Longer spans possible, reducing the need for intermediate supports.
Traditional Steel Beams: Suitable for shorter spans but require additional supports for large spaces.
3. Cost Considerations
Cellular Beams: Lower material costs, faster installation, and reduced fabrication expenses.
Traditional Steel Beams: More expensive due to higher material usage and additional structural supports.
4. Aesthetic and Design Flexibility
Cellular Beams: Visually appealing, often left exposed in modern architecture.
Traditional Steel Beams: Typically concealed within walls or ceilings.
5. Integration of Services
Cellular Beams: Openings allow for easy passage of electrical, plumbing, and HVAC systems.
Traditional Steel Beams: Require additional planning and support for integrating services.
Comparison with Castellated Beams
While both cellular beams and castellated beams are integral to modern construction, they have distinct differences that influence their use.
Cellular beams offer several advantages over castellated beams. They are more efficient, using less material while maintaining strength, and are more versatile, suitable for a broader range of applications. Additionally, cellular beams have a greater aesthetic appeal, allowing for unique and visually interesting designs.
However, castellated beams also have their benefits. They are often less expensive to manufacture due to simpler cutting and welding processes. They are particularly suitable for structures requiring high strength and stiffness. Understanding these differences helps in selecting the right beam type for specific construction needs, balancing efficiency, cost, and design requirements.
Passive Fire Protection for Cellular Beams
Incorporating passive fire protection in the design and construction of steel structures, including those using cellular beams, is crucial. Passive fire protection involves using materials and techniques to prevent fire spread and protect the structure from damage.
Various methods can be employed to protect cellular beams from fire, such as intumescent coatings, fire-resistant boards, and spray-applied fireproofing materials. These protective measures can be applied during the manufacturing process or after installation, depending on project requirements.
The choice of passive fire protection method depends on factors like the type of structure, occupancy, and local building codes. Consulting with a fire protection expert is essential to determine the most effective and efficient method for safeguarding cellular beams. This ensures compliance with safety standards and enhances the overall resilience of the steel structure.
Modelling and Analysis of Cellular Beams
Advanced software and techniques, such as finite element analysis (FEA), are used to model and analyse cellular beams. FEA involves creating a digital model of the beam and simulating various loads and conditions to predict its behaviour.
The process includes several steps:
Creating a digital model of the beam, incorporating its geometry and material properties.
Defining loads and boundary conditions, such as building weight and environmental factors.
Running simulations to observe the beam’s behaviour under different scenarios.
Analysing results to assess the beam’s strength, stiffness, and stability.
This modelling and analysis process helps optimize the design of cellular beams, ensuring they meet required standards and performance criteria. It also identifies potential issues, allowing for solutions to be developed before manufacturing and installation. By leveraging advanced software, engineers and architects can create efficient and effective designs that meet the demands of modern buildings and structures.
Choosing the Right Steel Beam for Your Project
When selecting between cellular beams and traditional steel beams, consider the following factors:
Load Requirements: Ensure the beam’s design meets your structural load specifications.
Span and Support Needs: Cellular beams are ideal for large open areas, whereas traditional steel beams may be better suited for smaller, load-bearing sections.
Budget Constraints: If cost savings and material efficiency are a priority, cellular beams offer significant advantages.
Architectural Preferences: If you want an exposed, modern look, cellular beams provide a stylish and functional solution.
Service Integration: If your project requires extensive mechanical and electrical systems, cellular beams simplify the integration process.
Why Choose Steel Beam Installers?
At Steel Beam Installers, we specialise in providing high-quality steel beam solutions tailored to your construction needs. Whether you're working on a commercial, industrial, or residential project, we offer:
Expert Guidance: Our team of structural engineers and steel fabrication experts ensure you get the right beam for your project.
Precision Engineering: We use advanced manufacturing techniques to produce custom cellular beams that meet your specifications.
Full-Service Installation: From beam selection to on-site installation, we handle every aspect of the process.
Local Expertise: Serving projects across the UK, we understand local building regulations and construction standards.
Conclusion: The Future of Steel Beam Design
Cellular beams represent a significant advancement in structural steel design, offering strength, efficiency, and sustainability. Their ability to reduce weight while maintaining performance makes them an attractive choice for modern construction projects.
If you're considering cellular beams for your next project, Steel Beam Installers is here to help. Contact us today to discuss your requirements and find out how we can provide custom steel solutions to meet your needs.
